Hardware Installation in NCTCUG's Demo Computer
January 23, 2002

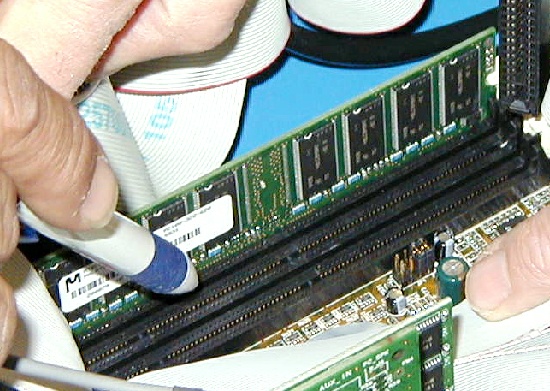

Existing 64MB SDRAM in first memory connector slot

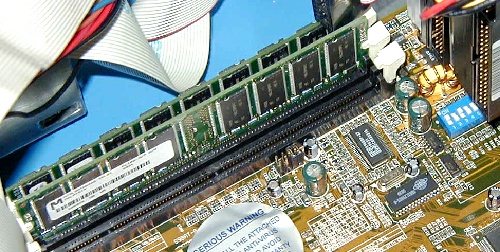

New 256MB SDRAM installed in Slot 1, with 64MB SDRAM in second slot

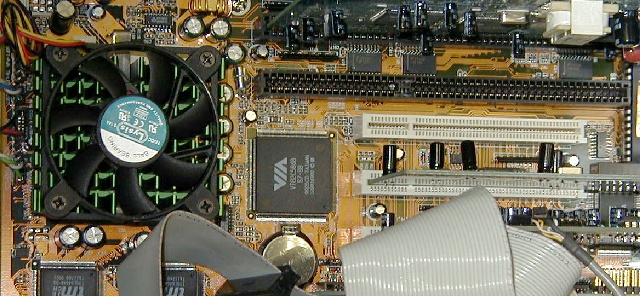

[left] Portion of motherboard, showing CPU cooling fan and heatsink above AMD K6 processor
[right] PCI slots (white), lower with network card, ISA slots above with Modem card

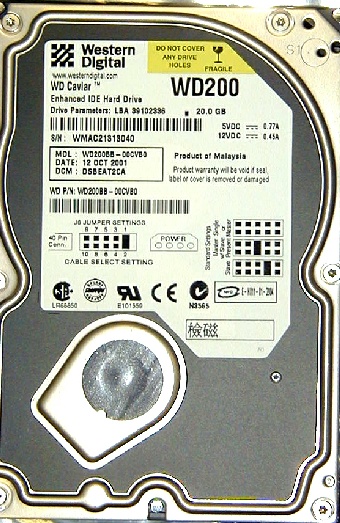

Top view, 20 Gigabyte Western Digital Caviar Hard Drive

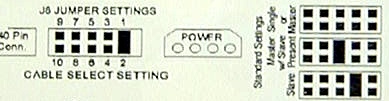

HD jumper settings shown on drive label;
reduces need to access manufacturer's web site

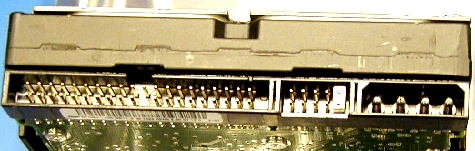

HD connections - controller cable connector, option block, power connector

New drive mounted next to old drive
Thought this looked surreal !!

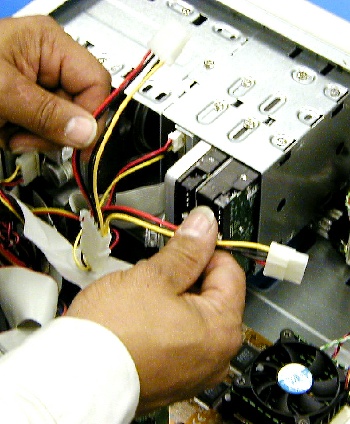

"Y" connector - power cable installed to feed both drives
